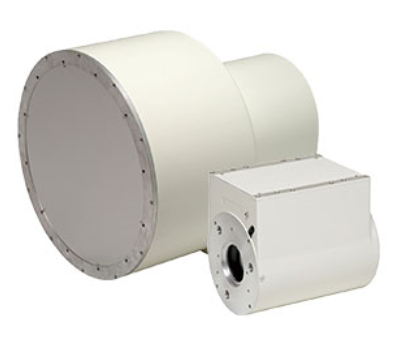

日本佳能X射线影像增强器
日本佳能X射线影像增强器
备有的产品阵容能观察从汽车厚部件，电池部件、半导体芯片及印制电路板的检查、检测到塑料瓶的填充状态。
用于高清检查
用于低能量检查
用于高速移动观察
产品阵容
4-inch
※点击照片显示大图。
| Image | Model Name | Material of Input Window | Application | Central Resolution | Contrast Ratio | ||
|---|---|---|---|---|---|---|---|
| Normal mode (Lp/cm typ.) | Magnified mode (Lp/cm typ.) | 10% area (typ.) | 10 mm dia. (typ.) | ||||
 | E5877J-P1AK | Al (Aluminium) | Standard | 4" mode: 77 | 2" mode: 110 | 22:1 | 18:1 |
| E5877J-P1K | |||||||
| E5877K-P1K | High-Resolution | 4" mode: 92 | 2" mode: 125 | 26:1 | 19:1 | ||
| E5877RE-P1K | High-Speed Response | 4" mode: 77 | 2" mode: 110 | 22:1 | 18:1 | ||
| E5889BE-P1K | Be (Beryllium) | Standard | 4" mode: 77 | 2" mode: 110 | 22:1 | 18:1 | |
| E5889K-P1K | High-Resolution | 4" mode: 92 | 2" mode: 125 | 26:1 | 19:1 | ||
| E5889BP-P1K | High-Speed Response | 4" mode: 77 | 2" mode: 110 | 22:1 | 18:1 | ||
Notes
Products with a model name ending in "AK" are 24 Vdc input type.
Other products are 100-240 Vac input type.
6-inch
※点击照片显示大图。
| Image | Model Name | Material of Input Window | Application | Central Resolution | Contrast Ratio | ||
|---|---|---|---|---|---|---|---|
| Normal mode (Lp/cm typ.) | Magnified mode (Lp/cm typ.) | 10% area (typ.) | 10 mm dia. (typ.) | ||||
 | E5870SD-P6AK | Al (Aluminium) | High-Resolution | 6" mode: 66 | 4" mode: 77 | 30:1 | 20:1 |
Notes
Products with a model name ending in "AK" are 24 Vdc input type.
9-inch
※点击照片显示大图。
| Image | Model Name | Material of Input Window | Application | Central Resolution | Contrast Ratio | ||
|---|---|---|---|---|---|---|---|
| Normal mode (Lp/cm typ.) | Magnified mode (Lp/cm typ.) | 10% area (typ.) | 10 mm dia. (typ.) | ||||
 | E5764SD-P4K | Al (Aluminium) | Standard | 9" mode: 48 | 6" mode: 56 | 25:1 | 16:1 |
| 4.5" mode: 66 | |||||||
| E5830SD-P4AK | High-Resolution | 9" mode: 52 | 6" mode: 58 | 30:1 | 19:1 | ||
| 4.5" mode: 68 | |||||||
Notes
Products with a model name ending in "AK" are 24 Vdc input type.
Other products are 100-240 Vac input type.
12-inch
※点击照片显示大图。
| Image | Model Name | Material of Input Window | Application | Central Resolution | Contrast Ratio | ||
|---|---|---|---|---|---|---|---|
| Normal mode (Lp/cm typ.) | Magnified mode (Lp/cm typ.) | 10% area (typ.) | 10 mm dia. (typ.) | ||||
 | E5796SD-P2AK | Al (Aluminium) | High-Resolution | 12" mode: 46 | 9" mode: 50 | 30:1 | 18:1 |
| 6" mode: 56 | |||||||
Notes
Products with a model name ending in "AK" are 24 Vdc input type.
16-inch
※点击照片显示大图。
| Image | Model Name | Material of Input Window | Application | Central Resolution | Contrast Ratio | ||
|---|---|---|---|---|---|---|---|
| Normal mode (Lp/cm typ.) | Magnified mode (Lp/cm typ.) | 10% area (typ.) | 10 mm dia. (typ.) | ||||
 | E5876RE-P2K | Al (Aluminium) | High-Speed Response | 16" mode: 38 | 12" mode: 40 | 25:1 | 15:1 |
| 9" mode: 48 | |||||||
| 6" mode: 58 | |||||||
Notes
Products with a model name ending in "K" are 100-240 Vac input type.
